Molecular design with silicon core: toward commercially available hole transport materials for high-performance planar p–i–n perovskite solar cells
Rongming Xue a, Moyao Zhang a, Guiying Xu a, Jingwen Zhang a, Weijie Chen a,Haiyang Chen a, Ming Yang c, Chaohua Cui a, Yaowen Li *a（李耀文）and Yongfang Li *ab（李永舫）
a Laboratory of Advanced Optoelectronic Materials, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China.
b CAS Research/Education Center for Excellence in Molecular Sciences, CAS Key Laboratory of Organic Solids, Institute of Chemistry, Chinese Academy of Sciences,Beijing 100190, China.
c College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China
J. Mater. Chem. A, 2018, 6, 404--413

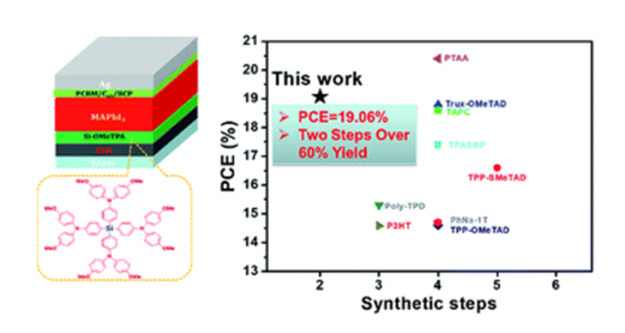

Organic hole transport layers (HTL) play a very important role for realizing high performance and low-cost planar p–i–n perovskite solar cells (pero-SCs). In this work, we synthesized two X-shaped organic HTL materials, Si-OMeTPA and SiTP-OMeTPA, with silicon cores and triphenylamine (TPA) derivative branches. This molecular design strategy can substantially simplify synthetic procedures making them available for reducing device costs. This is particularly applicable for Si-OMeTPA since it can be synthesized by two steps from commercial raw materials showing a total yield of over 60%. This molecularly designed Si-OMeTPA possesses advantages of high thermal stability, high crystallinity with a long range ordered lamellar structure, and excellent hole mobility. The resulting HTL can also facilitate the sequential growth of high-quality perovskite films, giving a significantly enhanced photovoltaic performance with a best power conversion efficiency of 19.06%, which is one of the highest PCE among the planar p–i–n pero-SCs to date. In addition, the devices exhibit negligible hysteresis, good reproducibility, and stability. To the best of our knowledge, this is the first example of an easily synthesized HTL material in planar p–i–n pero-SCs that shows superior performance relative to the well-known poly(bis(4-phenyl)(2,4,6-trimethylphenyl)amine) (PTAA) HTL.
链接：http://pubs.rsc.org/en/content/articlelanding/2018/ta/c7ta09716f#!divAbstract
