梁国正教授与顾嫒娟教授合作在J. Mater. Chem. A发表研究论文

A novel inorganic–organic hybridized intumescent flame retardant and its super flame retarding cyanate ester resins

Jipeng Han,a   Guozheng Liang,*a  (梁国正) Aijuan Gu,*a (顾嫒娟)  Juhua Ye,a   Zhiyong Zhanga and   Li Yuana



a Jiangsu Key Laboratory of Advanced Functional Polymer Design and Application, Department of Materials Science & Engineering, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China



J. Mater. Chem. A 2013, 1, 2169-2182.

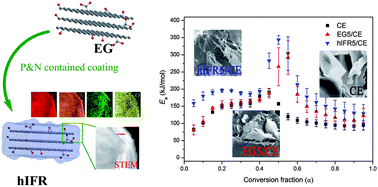

A unique hybridized intumescent flame retardant (hIFR), of which expandable graphite (EG) is chemically coated by organic chains containing phosphorous and nitrogen elements, was synthesized and characterized. Based on the successful synthesis, hIFR was used to develop modified cyanate ester (CE) resins with super flame retardancy. With the addition of only 5 wt% hIFR into CE resin, the peak and total heat releases significantly reduce to values that are only 32.3 and 23.1% of that of CE resin, respectively; meanwhile the fire performance index and limited oxygen index increase about 2 and 1.4 times. Besides, both smoke and carbon monoxide releases are remarkably reduced. These attractive data are much better than those of the modified CE resin with 5 wt% EG, clearly demonstrating that hIFR is a super flame retardant. Besides the traditional investigations on the structures of chars and cone calorimeter tests, an intensive study on the thermodegradation kinetics was carried out to reveal the mechanism of the outstanding flame retarding performance of the hIFR/CE resins. Different from EG, the unique structure of hIFR provides multi-effects on improving the flame retardancy, they are taking part in the structural formation of a cured network, increasing the thermal stability during the whole process of degradation, and strengthening the ability to form a thermally stable and condensed barrier for heat and mass transfer. These attractive features of hIFR/CE resins suggest that the method proposed herein is a new approach to prepare very effective flame retardants and corresponding super flame retarding resins.







链接: http://pubs.rsc.org/en/content/articlelanding/2013/ta/c2ta00996j#!divAbstract
