张茂杰教授在 Nano Energy 上发表研究论文

Chlorine substituted 2D-conjugated polymer for high-performance polymer solar cells with 13.1% efficiency via toluene processing

Qunping Fana , Qinglian Zhub , Zhuo Xua , Wenyan Sua , Juan Chena , Jingnan Wua , Xia Guoa , Wei Mab , Maojie Zhang *a (张茂杰) , Yongfang Lia,c



a Laboratory of Advanced Optoelectronic Materials, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China

b State Key Laboratory for Mechanical Behavior of Materials, Xi’an Jiaotong University, Xi’an 710049, China c CAS Research/Education Center for Excellence in Molecular Sciences, CAS Key Laboratory of Organic Solids, Institute of Chemistry, Chinese Academy of Sciences, Beijing 100190, China



Nano Energy48 (2018) 413--420

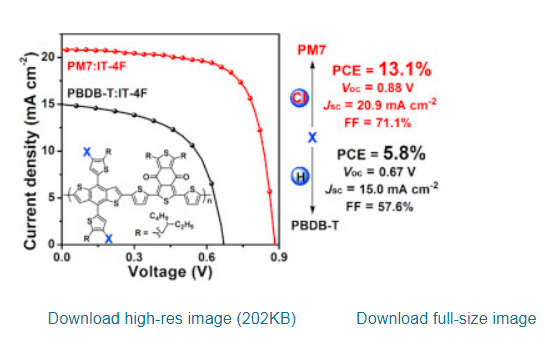

In the past few years, fluorine atom has been widely introduced into organic semiconductor (OS) materials to improve the photovoltaic performance of polymer solar cells (PSCs). In contrast, chlorine atom is rarely concerned, although it is also a halogen element and is more easily introduced into OS materials. Herein, we designed and synthesized a new D-A-type two-dimension (2D)-conjugated polymer, PM7, containing a chlorinated-thienyl benzodithiophene (BDT-2Cl) donor unit and a benzodithiophene-4,8-dione acceptor unit. Compared to the control polymer PBDB-T without chlorine substitution, PM7 shows lower HOMO energy level, higher absorption coefficient, enhanced crystallinity and higher carrier mobility. Moreover, the toluene-processed PSCs based on PM7 as donor and small molecule n-OS IT-4F as acceptor achieved a high power conversion efficiency (PCE) of 13.1% with high open-circuit voltage (Voc) of 0.88 V, short-circuit current density (Jsc) of 20.9 mA cm−2 and fill factor (FF) of 71.1%, while the PBDB-T:IT-4F-based PSC only exhibited a low PCE of 5.8% with low Voc of 0.67 V, Jsc of 15.0 mA cm−2 and FF of 57.6%. The PCE of 13.1% is among the highest values reported for the PSCs to date. These results indicate that the chlorine substitution is a simple and effective strategy to design high-performance conjugated polymer photovoltaic materials.





链接:https://www.sciencedirect.com/science/article/pii/S2211285518302246?via=ihub
